Engineering for the Real World

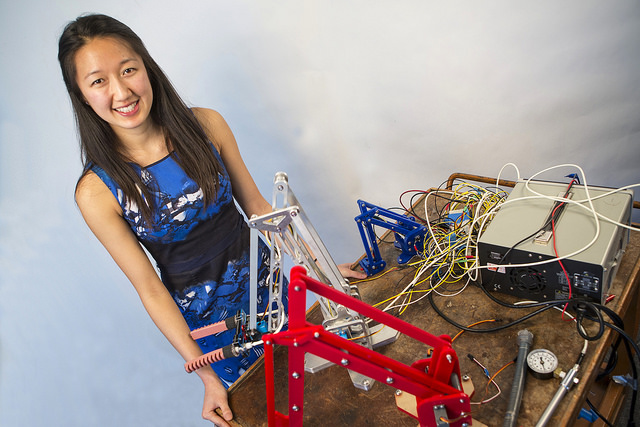

Jenny Chang, S.B., mechanical engineering

Jenn Chang, S.B. '16 (mechanical engineering) discusses her senior thesis project, which is a scalable deep sea robotic arm. Photo by Eliza Grinnell/SEAS Communications)

Whether plumbing the depths of the ocean floor or blasting off into outer space, students set their sites on solving complex problems in “Engineering Design Projects” (ES 100). The capstone course at the Harvard John A. Paulson School of Engineering and Applied Sciences (SEAS) challenges seniors to develop a creative project that solves a real-world engineering problem.

Sea Research: A Scalable Deep Sea Robotic Arm

Jenny Chang, S.B. ’16, mechanical engineering

Advisor: Rob Wood, Charles River Professor of Engineering and Applied Sciences

Deep sea coral reefs teem with life, but gathering samples from such a delicate environment is challenging. Chang developed a robotic manipulator system with four degrees of freedom that enables researchers to safely take reef samples using soft robotic grippers. Her intuitively-controlled robotic arm is small enough to be used with the remotely operated underwater vehicles typically utilized by academic research teams, but nimble enough to be effective in reef environments of different shapes and sizes.

“This project taught me so much about the entire process of building something on my own,” she said. “I learned that it is important to rigorously analyze the design. In the case of my project, I had to ensure that it could carry the loads that I wanted it to and operate within the deep sea environment.”

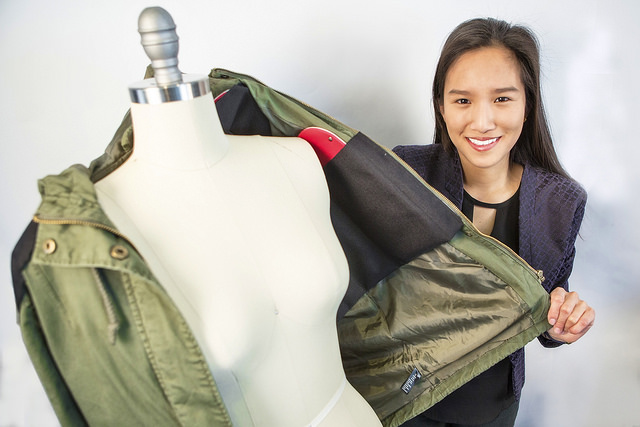

Stephanie Manivanh, S.B., mechanical engineering

Tego: Impact Jacket for Commuter Cyclists

Stephanie Manivanh, S.B. ’16, mechanical engineering

Advisors: Katia Bertoldi, John L. Loeb Associate Professor of Natural Sciences and Zhigang Suo, Allen E. and Marilyn M. Puckett Professor of Mechanics and Materials

Bicyclists on the streets of Boston dodge cars, pedestrians, and stationary obstacles as they wind through congested traffic – and sometimes they crash. Manivanh developed a jacket that incorporates three different safety features to dissipate or reduce the force of an impact: a hard shell, an interior cushion, and abrasion-resistant fabric that helps a fallen cyclist slide on the ground. The jacket’s armor is arranged to minimize the impact on four areas of the body with the highest rate of injury: the clavicles, elbows, ribs, and spine. The trick, Manivanh said, will be to convince cyclists they need protection, since only 63 percent wear helmets.

“The biggest engineering lesson I learned from this project is to double and triple check the results of all my experiments,” she said. “Performing such a large amount of data analysis made me realize just how much data, and backup data, goes into manufactured products.”

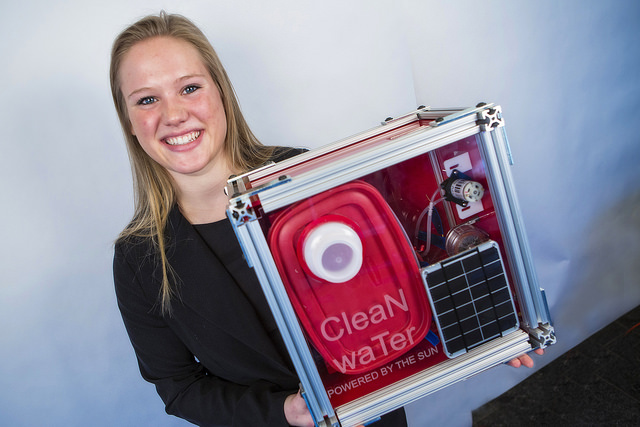

Emily Bonfig, S.B., mechanical engineering

CleaN WaTer: A Water Filtration System Powered by the Sun and Carbon Nanotube (CNT) Technology

Emily Bonfig, S.B. ’16, mechanical engineering

Advisor: Chad Vecitis, Associate Professor of Environmental Engineering

In Manchay, an impoverished shantytown on the slopes above Lima, Peru, reliable access to clean water is out of reach for many families. Bonfig, who visited the slum during a collaborative, project-oriented field program offered by SEAS, developed an affordable, efficient water filter that uses carbon nanotubes to remove microbial contaminants from drinking water. The filtration system utilizes a solar panel to charge a battery that operates the water pump and electrochemical filter, which effectively removed 100 percent of e.coli bacteria from lab water samples. The low-power filter can produce five liters of clean, drinking water with each charge.

“My favorite part of ES-100 was the community feel of the seniors working together,” she said. “Even though we were all working on different projects, it felt like we were working toward a common goal. It was great to have support from so many of my peers.”

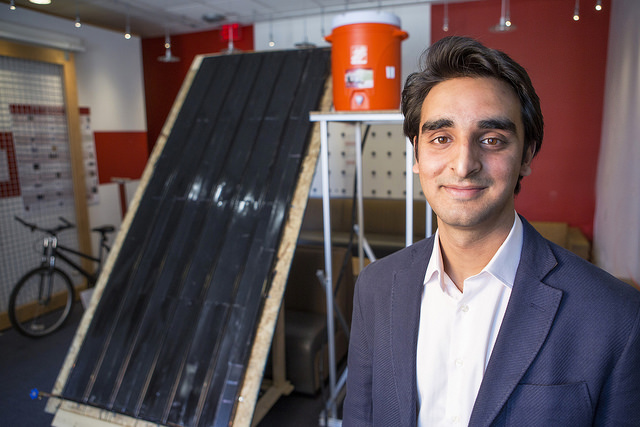

Mir Ibrahim, S.B., mechanical engineering

The Solar Siphon

Mir Ibrahim, S.B. ’16, mechanical engineering

Advisor: David Clarke, Extended Tarr Family Professor of Materials

Deforestation is a growing problem in rural Pakistan where villagers who lack access to electricity cut firewood to heat water. Ibrahim, a Pakistan native, developed a passive solar water heater to provide villagers with a low-cost, environmentally friendly solution. In Ibrahim’s prototype, aluminum fins, which are wrapped around a series of copper pipes, absorb sunlight to heat water moving through the pipes. The heater uses gravity and the principles of heat convection to move the water into a tank, without the need for mechanical pumps. This enabled Ibrahim to keep the cost significantly lower than the retail price of most passive solar water heaters. Since many Pakistani women spend much of their time gathering firewood, Ibrahim’s affordable solar water heater could free up their time for other activities, such as contributing to the household income.

“Through this project, I learned a lot about perseverance,” he said. “There were a lot of times where my prototype failed and I wasn’t sure if I would be able to build the device. But if you put your mind to something, and you’re willing to keep trying, you can eventually get it done.”

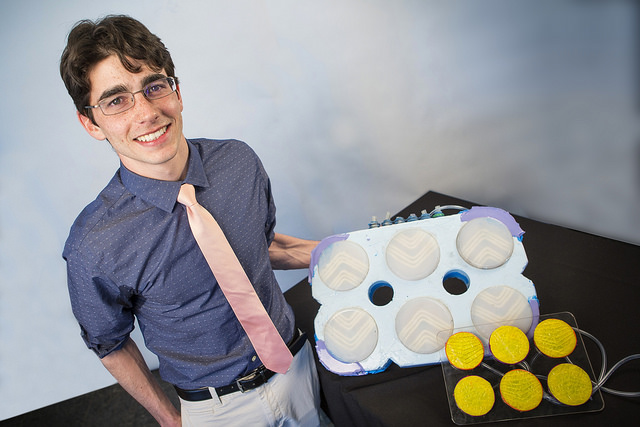

Andy O’Rourke, S.B., biomedical engineering

The Magic Carpet: A Novel Soft Robot

Andy O’Rourke, S.B. ’16, biomedical engineering

Advisors: Robert Howe, Abbott and James Lawrence Professor of Engineering, and Peter Hammer, Staff Scientist at Boston Children’s Hospital

After taking a hard look at soft robots, O’Rourke realized that most designs lack the strength and power needed to carry heavy loads. To tackle that shortfall, he designed a scalable soft robotic platform that is propelled by a set of six membranes, each with an embedded pattern of nylon rope. As air flows in and out of the membrane actuators, the nylon cords grip the ground, moving the robot forward. The system maximizes horizontal movement while minimizing vertical movement, which enables the robot to move faster than other designs. This unique motion provides the soft robot with enough power and stability to move forward while carrying a load of 55 kilograms, five times its weight. O’Rourke also developed a theoretical model for speed, so researchers could evaluate future soft robotic platforms before building prototypes.

“Current motion techniques work when a soft robot is connected to a wall supply, but even when you have to carry just five kilograms of machines on board, it just doesn’t move anywhere,” said O’Rourke. “If the technology I developed could enable enough weight-bearing to even get a battery onto the robot, that would be huge.”

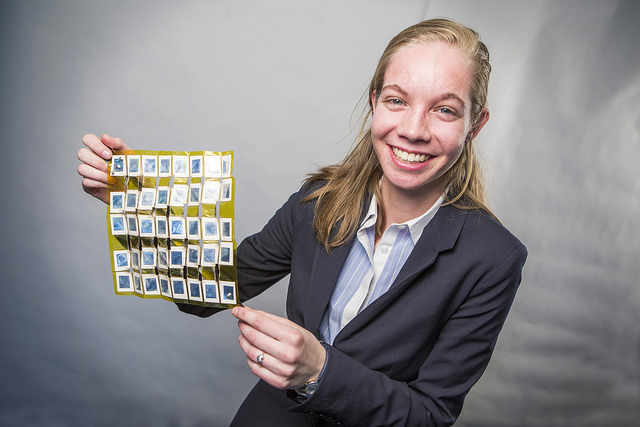

Juliette Mahaffey, S.B., mechanical engineering

Alternative Mechanical System for Satellite Solar Arrays

Juliette Mahaffey, S.B. ’16, mechanical engineering

Advisor: Rob Wood, Charles River Professor of Engineering and Applied Sciences

Tiny cube satellites sent up into the Earth’s orbit often carry a heavy price tag; it can cost more than $19,000 for a hinged solar array to power the miniature data-gathering devices. Mahaffey used an origami design, the Miura Fold, to develop a model of an affordable, lightweight solar array that could generate the 30 watts of power needed for the miniature satellites. Her pop-up solar array weights only 29 grams and deploys in less than half a second. The biggest benefit of the device, she said, is that it is made using components and techniques that a university research team could replicate in-house, without having to purchase a costly, pre-made system.

“It was very challenging to model how it would actually work in space because, obviously, the gravitational environment is very different,” she said. “Using the origami fold makes the device easier to reproduce by researchers who are using these smaller satellites. It is also more lightweight than other solar arrays, and reducing the weight of a payload is generally desirable for launches.”

Information provided by Harvard University
